Description

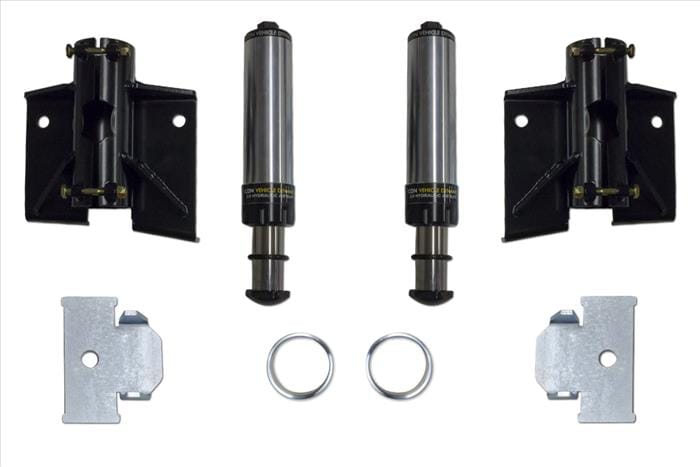

Bolt on a set of ICON Vehicle Dynamics rear hydraulic air bumpstops to improve the on or off-road capabilities of your 2005-2023 Toyota Tacoma when using maximum suspension travel. ICON’s race proven hydraulic air bumpstops are tested, tried and true, from Cabo to Canada in all conditions. This vehicle specific tuned hydraulic air bumpstop system offers both smooth engagement, maximum bottom resistance, and smooth controlled return while being used in extreme conditions. The true value to using a compression and rebound tuned bumpstop is the exponentially increasing force is smooth, not abrupt or harsh like the OEM bumpstop.
As part of the kit, ICON includes an industry first selectable install height for the hydraulic air bumpstop so up travel is not limited with use of an aftermarket thicker leaf pack. This allows you to upgrade your leaf springs down the road, and retain maximum up travel without having to purchase a new bump stop bracket kit.
- Bolt-on design using existing holes in frame for clean install with no cutting or welding
- Industry only Toyota Tacoma specific tune to maximize bottom out resistance while having smooth engagement as well as return
- Absorbs additional impact energy over the OEM rubber bumpstop and returns the axle in a more controlled manner
- Industry only kit allowing adjustment for leaf pack height changes so uptravel is not lost
- Can be returned to stock
- Linear-digressive piston which compliment a bumpstop over the industry standard linear-linear piston. Infinite tuning options with valve stack, oil volume, and nitrogen pressure adjustments
- Anodized billet top cap, o-ring sealed back up cap, seal head and striker
- CAD Plated body for corrosion free service
- Urethane rod seal and wiper for long service life
- User serviceable
Additional fitment info from vendor. (Please verify and see fitment disclaimer below)
- 2022-2023 Toyota Tacoma Base
- 2005-2015 Toyota Tacoma Base 4WD
- 2006 Toyota Tacoma Base Prerunner
- 2016-2023 Toyota Tacoma Edicion Especial
- 2016-2023 Toyota Tacoma Limited
- 2021-2023 Toyota Tacoma Nightshade
- 2005-2015 Toyota Tacoma Pre Runner
- 2017-2023 Toyota Tacoma Sport
- 2016-2023 Toyota Tacoma SR
- 2016-2023 Toyota Tacoma SR5
- 2006-2009 Toyota Tacoma SR5 Prerunner
- 2021-2022 Toyota Tacoma Trail
- 2023 Toyota Tacoma Trail Special Edition
- 2016-2023 Toyota Tacoma TRD Off-Road
- 2015 Toyota Tacoma TRD Pro
- 2017-2023 Toyota Tacoma TRD Pro
- 2010-2023 Toyota Tacoma TRD Sport
- 2006-2009 Toyota Tacoma TRD Sport Prerunner
