Description

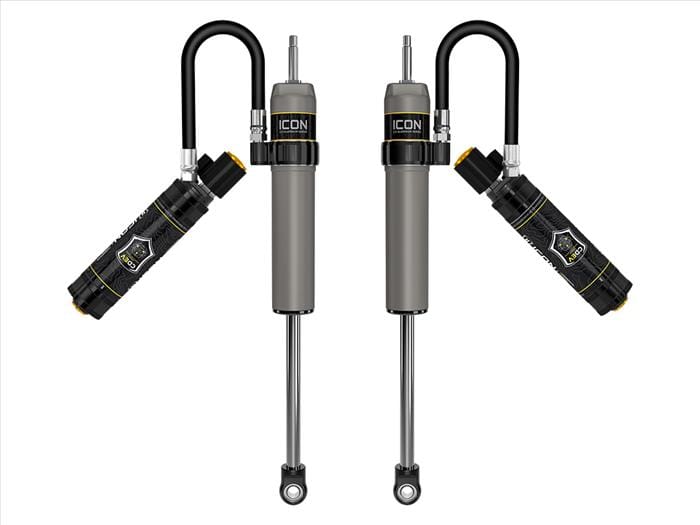

ICON Vehicle Specific (V.S.) 2.5 Aluminum Series shocks with CDEV are designed and built to give your vehicle outstanding performance off-road and a smooth ride on the street. These shocks are configured specifically for each application in both length and damping tune. For piggyback and specific remote reservoir applications, ICON’S unique use of a 6061-billet aluminum manifold a few inches below the top cap of the shock creates an internal Bump Zone that when used creates an additional 20% of damping force. This additional force helps prevent harsh bottom outs and controls the suspension when compressing at high velocity. Like all ICON’S Shock Absorbers, V.S. 2.5 Aluminum Series shocks with CDEV are fully rebuildable and re-tunable. The ICON CDE Valve upgrade is included for those desiring an easy way to tune the ride electronically from inside the vehicle.
Compression Damping Electronic Valve (CDEV) is an electronically controlled valve that meters the flow of oil to regulate the amount of damping force that is created by the shock when compressed. This infinitely variable valve can react in less than 40ms and has the ability to make extremely precise adjustments for varying terrain. CDEV’s hydraulic circuits are also custom tailored per application to create the highest resolution and dynamic range allowable for each specific vehicle. Powered by ICON Intelligent Control and proprietary ICON mobile app, the system uses information from the onboard G-force sensor and Gyroscope to perform calculations based on algorithms and user-defined settings to predict terrain and adjust shock settings via the CDEV accordingly.
- ICON’s CDE Valve technology allows for in vehicle adjustment of compression damping settings and active adjustment via the ICON Intelligent Control (IIC)
- ICON’s internal “Bump Zone” increases damping by 20% to provide more control as the shock approaches full compression
- One-piece, hard anodized, impact extruded aluminum cylinders offer excellent corrosion resistance and consistent finish
- Remote reservoir design improves heat dissipation to reduce shock fade during prolonged use
- Premium grade 5WT shock oil for consistent suspension damping along a wide temperature range
- One-piece digressive piston design with vehicle specific valving for unsurpassed performance and ride quality on and off-road
- 7/8″ diameter induction hardened, chrome plated shock shaft
- PTFE lined spherical bearings and application specific mounting hardware
- 6061 aircraft grade aluminum CNC machined components
- Fully rebuildable and re-tunable
Additional fitment info from vendor. (Please verify and see fitment disclaimer below)
- 2022 Ram 2500 Big Horn 4WD
- 2022 Ram 2500 Laramie 4WD
- 2022 Ram 2500 Limited 4WD
- 2022 Ram 2500 Lone Star 4WD
- 2022 Ram 2500 Power Wagon
- 2022 Ram 2500 SLT HD
- 2022 Ram 2500 Tradesman 4WD
- 2021 Ram 2500 Big Horn 4WD
- 2021 Ram 2500 Laramie 4WD
- 2021 Ram 2500 Laramie Longhorn 4WD
- 2021 Ram 2500 Limited 4WD
- 2021 Ram 2500 Lone Star 4WD
- 2021 Ram 2500 Power Wagon
- 2021 Ram 2500 SLT HD
- 2021 Ram 2500 Tradesman 4WD
- 2020 Ram 2500 Big Horn 4WD
- 2020 Ram 2500 Laramie 4WD
- 2020 Ram 2500 Laramie Limited 4WD
- 2020 Ram 2500 Laramie Longhorn 4WD
- 2020 Ram 2500 Limited 4WD
- 2020 Ram 2500 Lone Star 4WD
- 2020 Ram 2500 Power Wagon
- 2020 Ram 2500 SLT HD
- 2020 Ram 2500 Tradesman 4WD
- 2019 Ram 2500 Big Horn 4WD
- 2019 Ram 2500 Laramie 4WD
- 2019 Ram 2500 Laramie Limited 4WD
- 2019 Ram 2500 Laramie Longhorn 4WD
- 2019 Ram 2500 Limited 4WD
- 2019 Ram 2500 Lone Star 4WD
- 2019 Ram 2500 Power Wagon
- 2019 Ram 2500 R/T 4WD
- 2019 Ram 2500 SLT 4WD
- 2019 Ram 2500 SLT HD
- 2019 Ram 2500 Sport 4WD
- 2019 Ram 2500 Tradesman 4WD
- 2018 Ram 2500 Big Horn 4WD
- 2018 Ram 2500 Laramie 4WD
- 2018 Ram 2500 Laramie Limited 4WD
- 2018 Ram 2500 Laramie Longhorn 4WD
- 2018 Ram 2500 Limited 4WD
- 2018 Ram 2500 Outdoorsman
- 2018 Ram 2500 Power Wagon
- 2018 Ram 2500 R/T 4WD
- 2018 Ram 2500 SLT 4WD
- 2018 Ram 2500 SLT HD
- 2018 Ram 2500 Sport 4WD
- 2018 Ram 2500 ST 4WD
- 2018 Ram 2500 Tradesman 4WD
- 2017 Ram 2500 Big Horn 4WD
- 2017 Ram 2500 Laramie 4WD
- 2017 Ram 2500 Laramie HD
- 2017 Ram 2500 Laramie Limited 4WD
- 2017 Ram 2500 Laramie Longhorn 4WD
- 2017 Ram 2500 Limited 4WD
- 2017 Ram 2500 Outdoorsman
- 2017 Ram 2500 Power Wagon
- 2017 Ram 2500 R/T 4WD
- 2017 Ram 2500 SLT 4WD
- 2017 Ram 2500 SLT HD
- 2017 Ram 2500 Sport 4WD
- 2017 Ram 2500 ST 4WD
- 2017 Ram 2500 Tradesman 4WD
- 2016 Ram 2500 Big Horn 4WD
- 2016 Ram 2500 Hemi Sport 4WD
- 2016 Ram 2500 Laramie 4WD
- 2016 Ram 2500 Laramie Limited 4WD
- 2016 Ram 2500 Laramie Longhorn 4WD
- 2016 Ram 2500 Limited 4WD
- 2016 Ram 2500 Outdoorsman
- 2016 Ram 2500 Power Wagon
- 2016 Ram 2500 R/T 4WD
- 2016 Ram 2500 SLT 4WD
- 2016 Ram 2500 ST 4WD
- 2016 Ram 2500 Tradesman 4WD
- 2015 Ram 2500 Big Horn 4WD
- 2015 Ram 2500 Hemi Sport 4WD
- 2015 Ram 2500 Laramie 4WD
- 2015 Ram 2500 Laramie Limited 4WD
- 2015 Ram 2500 Laramie Longhorn 4WD
- 2015 Ram 2500 Lone Star 4WD
- 2015 Ram 2500 Outdoorsman
- 2015 Ram 2500 Power Wagon
- 2015 Ram 2500 R/T 4WD
- 2015 Ram 2500 SLT 4WD
- 2015 Ram 2500 ST 4WD
- 2015 Ram 2500 Tradesman 4WD
- 2014 Ram 2500 Big Horn 4WD
- 2014 Ram 2500 Laramie 4WD
- 2014 Ram 2500 Laramie Limited 4WD
- 2014 Ram 2500 Laramie Longhorn 4WD
- 2014 Ram 2500 Lone Star 4WD
- 2014 Ram 2500 Outdoorsman
- 2014 Ram 2500 Power Wagon
- 2014 Ram 2500 R/T 4WD
- 2014 Ram 2500 SLT 4WD
- 2014 Ram 2500 ST 4WD
- 2014 Ram 2500 Tradesman 4WD
