Description

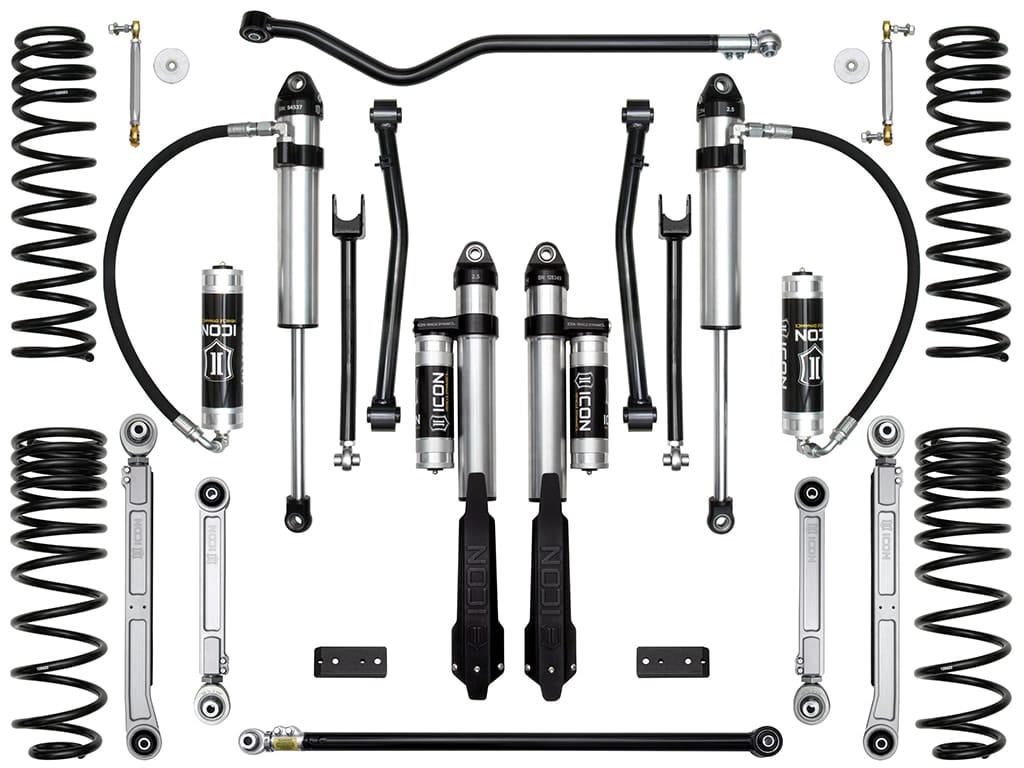

The Stage 7 ICON 2.5″ Suspension System for the Jeep Gladiator is the ideal setup for drastically improving off-road performance and overall ride quality for the application that will see frequent heavy off-road use. This complete suspension system features ICON’s proven 2.5 Aluminum Series shocks, 2.5″ lift dual-rate front coil springs, tubular steel fixed lower and adjustable upper front links, billet front sway bar links, a triple-rate rear coil spring kit, billet aluminum adjustable upper and lower rear links, a rear sway bar relocation kit, front and rear adjustable track bars, and all necessary hardware for install. This system provides an increase of over 30% front and 20% rear wheel travel and was designed around the use of a 35″ tire. For those looking to run a 37″ tire this can be achieved with the ICON Jeep JT Bump Stop Spacer Kit (Part #22071).
- 2.5″ lift height
- Fits 35″ tires (37″ with extended bump stop spacer kit)
- 33% front, 23% rear increase in wheel travel
- Improves on and off-road ride quality over stock
- Front upper and lower links included for caster angle correction and improved front end articulation
- Rear billet upper and lower links improve rear end articulation and allow for on-vehicle pinion angle adjustment
- Dual rate front coil springs with lifetime guarantee against sagging/breakage
- Triple rate rear coil springs with ICON-engineered droop, ride, and overload rates
- 2.5 Aluminum Series shocks feature one-piece impact extruded aluminum cylinders for excellent corrosion resistance and consistent finish
- Front and rear track bars ensure proper alignment and improved articulation
- Adjustable, billet aluminum front sway bar links
- 100% bolt-on system makes for an easy install
- “ICON 1K” tested under rigorous off-road conditions to validate tune, performance, strength, and durability
Kit Components
- 22021 QTY:1 18-23 JL/20-23 JT FRONT FIXED LOWER LINK KIT
- 22022 QTY:1 18-23 JL/20-23 JT FRONT ADJ UPPER LINK KIT
- 22063 QTY:1 20-23 JEEP JT/19-23 RAM 1500 BILLET REAR ADJUSTABLE LOWER LINK KIT
- 22064 QTY:1 20-23 JEEP JT/19-23 RAM 1500 BILLET REAR ADJUSTABLE UPPER LINK KIT
- 22025 QTY:1 18-23 JL 2.5″/20-23 JT 2″ FRONT DUAL RATE SPRING KIT
- 22066 QTY:1 20-UP JT 1.5″ REAR MULTI RATE SPRING KIT
- 22061 QTY:1 18-UP JL/20-UP JT FRONT SWAY BAR LINK KIT
- 22062 QTY:1 20-UP JT REAR SWAY BAR RELOCATION KIT
- 22027 QTY:1 18-UP JL/20-UP JT FRONT ADJ TRACK BAR KIT
- 22068 QTY:1 20-23 JEEP JT/19-23 RAM 1500 REAR ADJ TRACK BAR KIT
- 27821P QTY:1 20-23 JT/18-23 JL 2.5″ FRONT 2.5 VS RR PAIR
- 27727P QTY:1 20-23 JT 1.5″ REAR 2.5 VS PB PAIR
Additional fitment info from vendor. (Please verify and see fitment disclaimer below)
- 2022 Jeep Gladiator High Altitude Pentastar
- 2022 Jeep Gladiator Mojave
- 2022 Jeep Gladiator Overland Pentastar
- 2022 Jeep Gladiator Rubicon Pentastar
- 2022 Jeep Gladiator Sport Pentastar
- 2022 Jeep Gladiator Sport S Pentastar
- 2022 Jeep Gladiator Willys Pentastar
- 2022 Jeep Gladiator Willys Sport Pentastar
- 2021 Jeep Gladiator 80th Anniversary Pentastar
- 2021 Jeep Gladiator High Altitude Pentastar
- 2021 Jeep Gladiator Mojave
- 2021 Jeep Gladiator Overland Pentastar
- 2021 Jeep Gladiator Rubicon Pentastar
- 2021 Jeep Gladiator Sport Pentastar
- 2021 Jeep Gladiator Sport S Pentastar
- 2021 Jeep Gladiator Willys Pentastar
- 2021 Jeep Gladiator Willys Sport Pentastar
- 2020 Jeep Gladiator Altitude
- 2020 Jeep Gladiator Launch Edition
- 2020 Jeep Gladiator Mojave
- 2020 Jeep Gladiator Overland Pentastar
- 2020 Jeep Gladiator Rubicon Pentastar
- 2020 Jeep Gladiator Sport Pentastar
- 2020 Jeep Gladiator Sport S Pentastar
