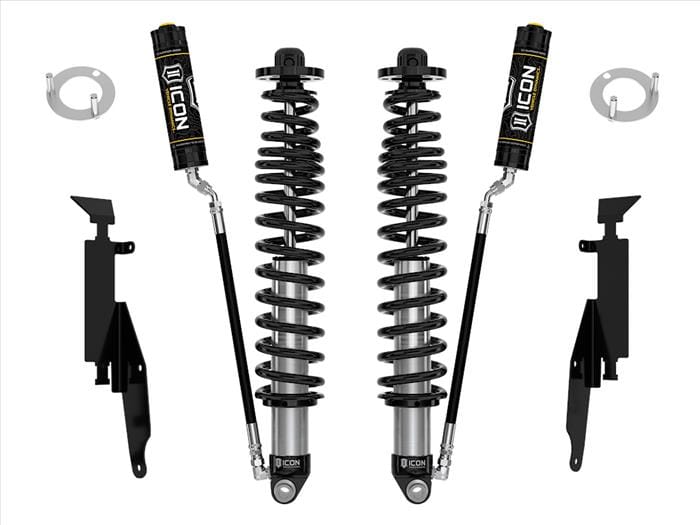

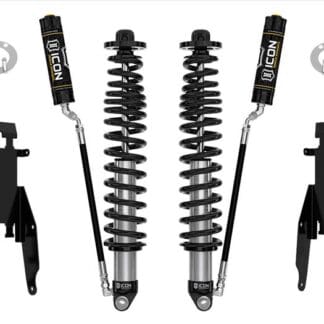

Icon – 21-26 BRONCO REAR 2.5 VS RR COILOVER KIT HEAVY RATE SPRING – 48711

Description

ICON Vehicle Dynamics V.S. 2.5 Series remote reservoir rear coilover shocks are an incredible upgrade for the rear end of the 2021-2026 Ford Bronco. These adjustable coilovers allow up to 2-3″ of rear lift height adjustability on 4-door Broncos without the Sasquatch package or 1.25-2.25″ of rear lift over stock 4-door Sasquatch equipped Broncos, allowing the use of larger, more aggressive wheel and tire combinations. ICON’s Vehicle-specific shock length and valving along with the larger 2.5″ shock body and increased piston area over stock components yield the maximum travel possible along with superior ride quality and suspension performance both on- and off-road. Reservoirs greatly increase shock oil volume and heat dissipation surface area to resist overheating and cavitation under hard use, which can lead to damper fade. These rear coilovers are mounted in a shaft up orientation and feature unique ICON engineered progressive dual rate coil springs that provide extra weight capacity for those who frequently load out their Broncos with extra gear and equipment while maintaining excellent on- and off-road performance characteristics. This shaft up orientation also requires the reservoir hose to be routed along the rear lower links so ICON offers hose bracket options for the OE or ICON tubular links while ICON billet links incorporate this bracketry into their design. When paired with ICON 2.5 Series front coilovers vehicle control will be balanced front to rear, resulting in the best overall driving experience for your Ford Bronco.

• Increased wheel travel (up to 14″) and ride quality over stock
• Vehicle specific tuned for superior shock damping and control
• Remote reservoirs maintain cooler operating temperatures during extended off-road use
• Adjustable up to 2-3″ of rear lift height on non-Sasquatch or 1.25-2.25″ of rear lift on Sasquatch Broncos
• Unique ICON engineered dual rate coil springs with increased spring rates for heavier equipped Broncos
• 6061 Aircraft grade aluminum CNC machined components
• Corrosion resistant CAD plated shock bodies with 7/8″ diameter shaft
• FK rod end bearings for extended longevity and minimal deflection
• Fully rebuildable and re-tunable
• 100% Bolt-on – no drilling, cutting or welding necessary for installation

Additional fitment info from vendor. (Please verify and see fitment disclaimer below)

• 2023 Ford Bronco Badlands
• 2023 Ford Bronco Base
• 2023 Ford Bronco Big Bend
• 2023 Ford Bronco Black Diamond
• 2023 Ford Bronco Everglades
• 2023 Ford Bronco Heritage Edition
• 2023 Ford Bronco Heritage Limited Edition
• 2023 Ford Bronco Outer Banks
• 2023 Ford Bronco Wildtrak
• 2022 Ford Bronco Badlands
• 2022 Ford Bronco Base
• 2022 Ford Bronco Big Bend
• 2022 Ford Bronco Black Diamond
• 2022 Ford Bronco Everglades
• 2022 Ford Bronco Outer Banks
• 2022 Ford Bronco Wildtrak
• 2021 Ford Bronco Badlands
• 2021 Ford Bronco Base
• 2021 Ford Bronco Big Bend
• 2021 Ford Bronco Black Diamond
• 2021 Ford Bronco First Edition
• 2021 Ford Bronco Outer Banks
• 2021 Ford Bronco Wildtrak
