Front Options (Choice)

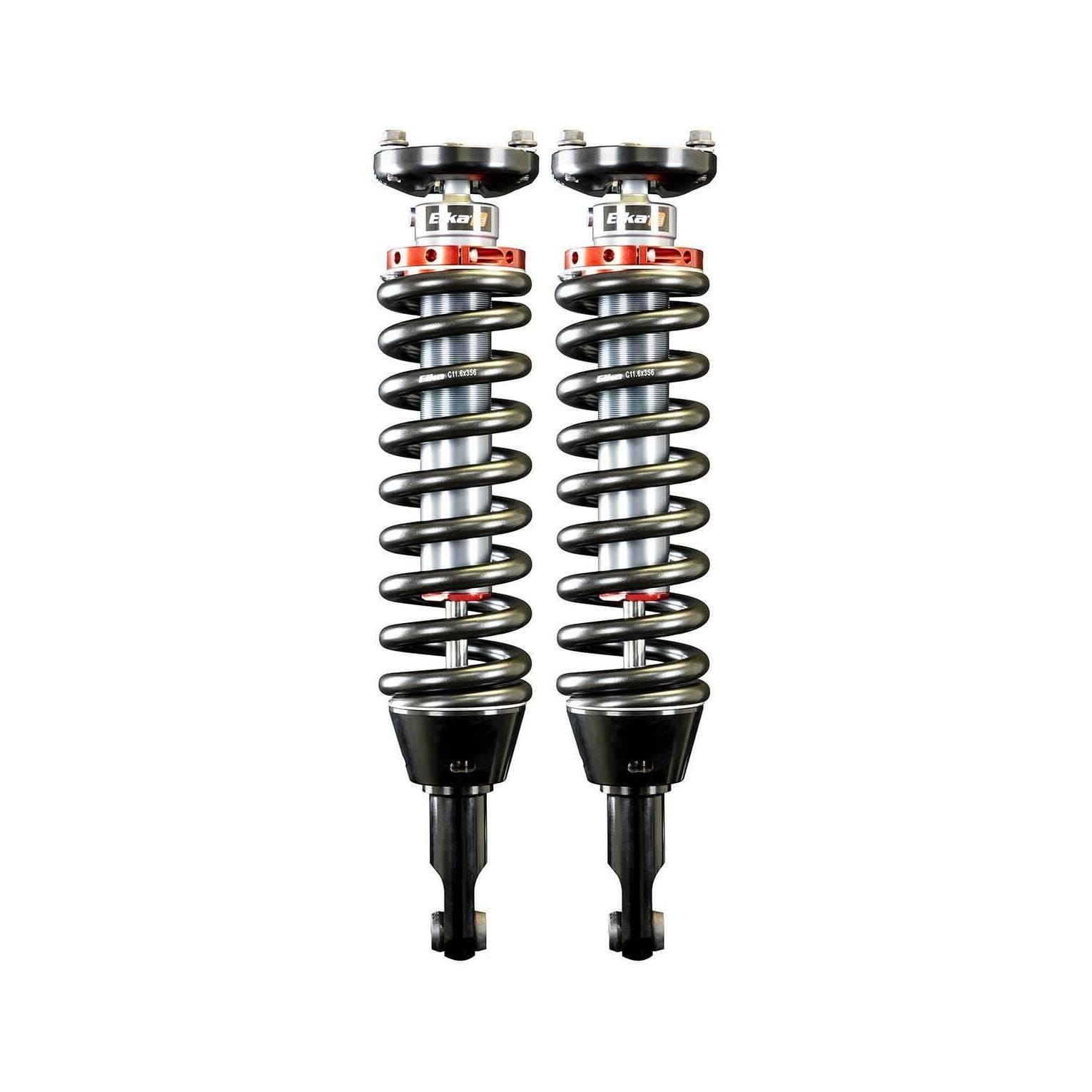

- 1 x 90227 – 2.0 IFP FRONT SHOCKS for TOYOTA TACOMA 4×4, 2005 to 2023 (0 in. to 2 in. lift)
- 1 x 90230 – 2.0 IFP FRONT SHOCKS for TOYOTA TACOMA 4×4, 2005 to 2023 (2 in. to 3 in. lift)
The 2.0 IFP model is a simple bolt-on upgrade over OEM shocks. They are a gas-pressurized design with internal floating piston to help prevent cavitation and fading.
This configuration is for use with stock geometry and can accommodate 0 in. to 2 in. of lift with either stock or aftermarket upper control arms.
Ride height is preset from our factory at approximately 1.5 in. of lift for a stock truck with stock tires, actual ride height may vary depending on wheels dimensions and upper control arms used.
Package includes two (2) side-specific front shocks
ADJUSTMENT
- Spring Preload
Increase the off-road capabilities while improving the comfort and handling of your TACOMA
The 2.0 IFP shocks provide the optimal combination of:
- Firm and stable handling for driving on desert and fire roads (sports car feeling);
- Plush compliance while off-road driving over washboard;
- Strong ramping effect for extra bottom-out protection over large dips and washes;
- Maximum articulation and traction for rock climbing.
BENEFITS
- High-performance off-road capabilities
- Improved handling and comfort for casual driving
- Better traction
- Provides leveling capabilities for better weight distribution
- Increased protection against bottoming-out
RIDE ENHANCEMENTS
- Spring setup optimized for each setup
- Better attenuation of vibration, leading to major noise reduction in the cabin (much less squeak and rattle)
- Damping characteristics optimized for each truck and setup, providing a smoother ride
- Increased comfort in both on road and off-road conditions, especially over washboard and square-edge impacts
- More stable and more predictable handling
- Reduced front-end diving when cornering or braking
- Reduced rear-end bucking and lifting
- Increased damping and spring rate for better handling when towing or loading truck
TECHNICAL FEATURES
- Strong 2.0 in. (46mm) hard-anodized aluminum body for cooler operation
- Gas-pressurized design with internal floating piston to prevent cavitation and fading
- Internal hydraulic valving optimized for each vehicle platform
- Built from CNC-machined and forged aluminum parts, aluminum bodies and premium-quality internal components
- Heavy-duty 5/8 in. (16mm) induction-hardened shaft
- Triple sealing system with dust wiper, high-pressure step-seal and premium quality o-ring
- Direct, bolt-on replacement that uses stock shocks location
- Proprietary ultra-low friction, light viscosity semi-synthetic oil blend, ultra-resistant to high operating temperature
- Coilover models use Elka’s durable high-tensile alloy springs or Eibach springs (depending on model & configuration)
- Fully rebuildable using affordable replacements parts and springs, multiple replacement valving shim stacks available
Rear Options (Choice)
- 2 x F4-BE5-B110-T5 – Extended 5100 Rears
- 2 x 25-311259 – B8 5160 – Suspension Shock Absorber – Toyota Tacoma ’05-, R, B8 5160
The Toyota Tacoma Bilstein 5100 Series Shocks are designed specifically for your lifted vehicle. These shock absorbers feature a corrosion resistant zinc finish and vehicle specific valving. 5100 Series shocks use Bilstein’s superior single tube high gas pressure design for consistent fade-free performance and long life. Bilstein’s patented Digressive self-adjusting valving delivers improved damping control and a smooth ride for your truck on all road surfaces at any speed.
Shock Specifications:
Can support, not provide 3″”-4″” of lift
Collapsed: 16.34″”
Extended = 27.28″”
Travel = 10.94″”
UCAs Options (Choice)
- No UCA
- SPC Adjustable Ball Joint UCAs – 35470
- Icon Delta Joint UCAs – 58450DJ
Rear Lift Options (Choice)
- OME Medium Dakar w/ Ubolts+Bushings – EL111R
- OME Heavy Dakar w/ Ubolts+Bushings – EL112R
- Icon Multi Rate RXT Leaf Pack w/ Ubolts – 158505
- Deaver U402 Stage 1 w/ Ubolts+Bushings – U402-S1
- Deaver U402 Stage 2 w/ Ubolts+Bushings – U402-S2
- Deaver U402 Stage 3 w/ Ubolts+Bushings – U402-S3
Additional Rear Components (Included)
- Carrier Bearing Drop – FK29
Additional fitment info from vendor. (Please verify and see fitment disclaimer below)
- Tacoma 2005-2015
- Tacoma 2016-2023
